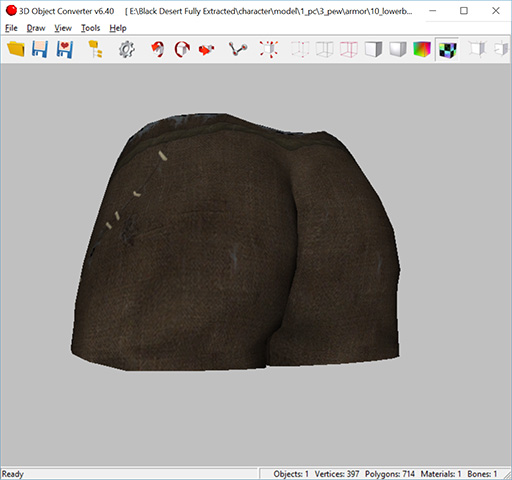

Got it to work! but encountered another problem, how do I fix this?
By the way, do you have a donation page? Paypal etc?
Black Desert Online Modding Tools (3 Viewers)
- Thread starter BlackFireBR
- Start date
- Watchers 161
Got it to work! but encountered another problem, how do I fix this?
By the way, do you have a donation page? Paypal etc?
BlackFireBR
Content Creator
- Joined
- Sep 2, 2013
Oh, there is a way to fix that, but it will cause texture clipping in other armors.

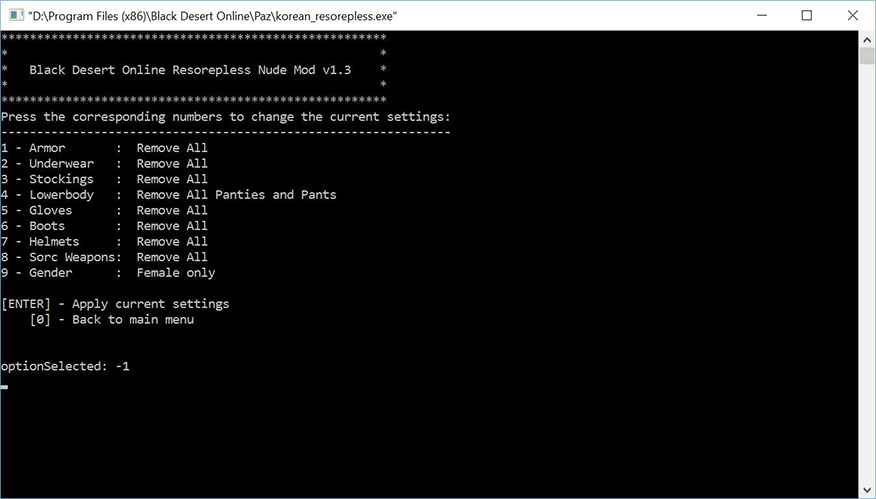

I'm actually working on a new version for my Black Desert Online Resorepless Nude Mod that has the option to remove those shorts and panties, without having those problems:

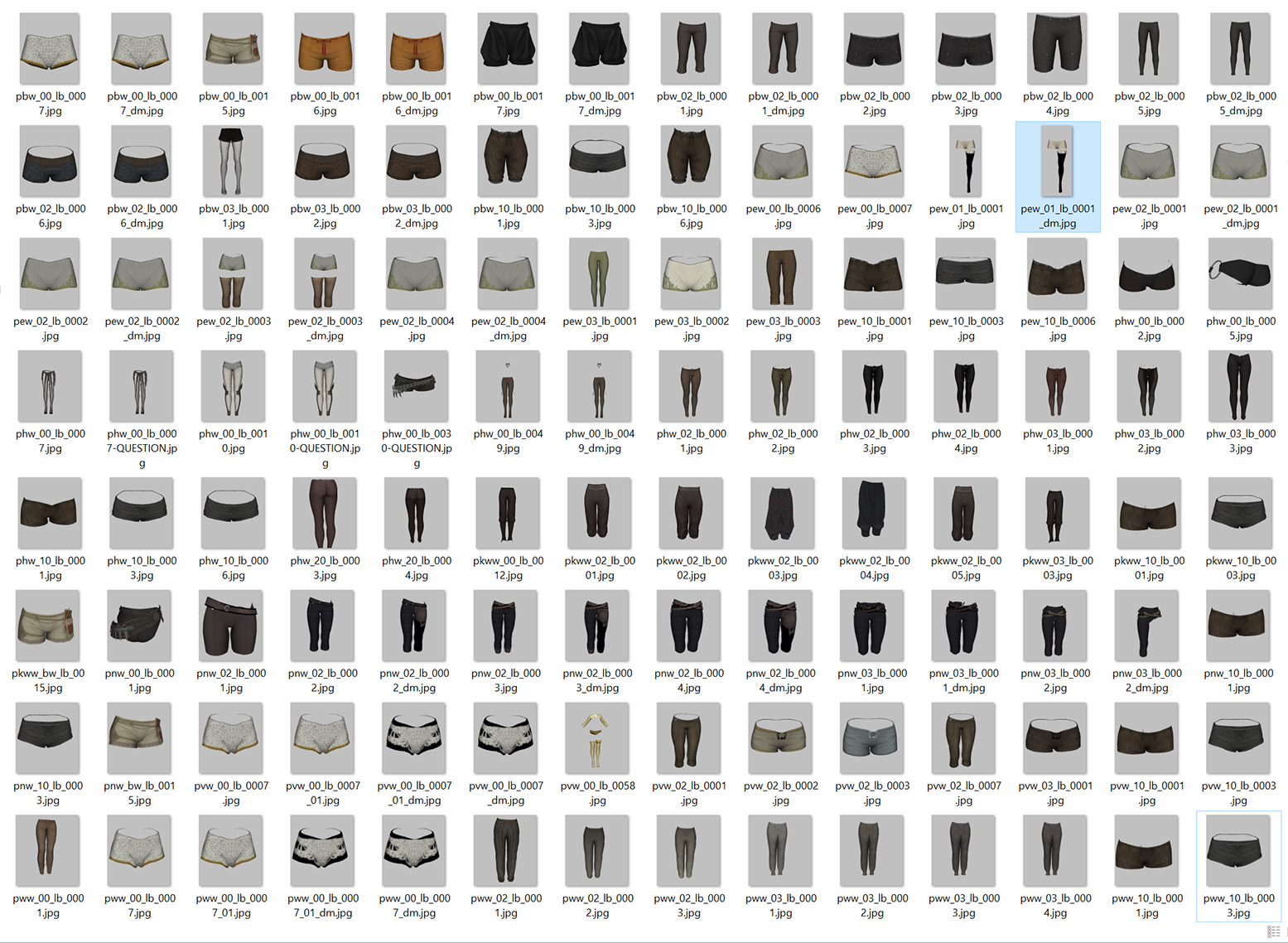

I had to fine pick all those files, by hand:

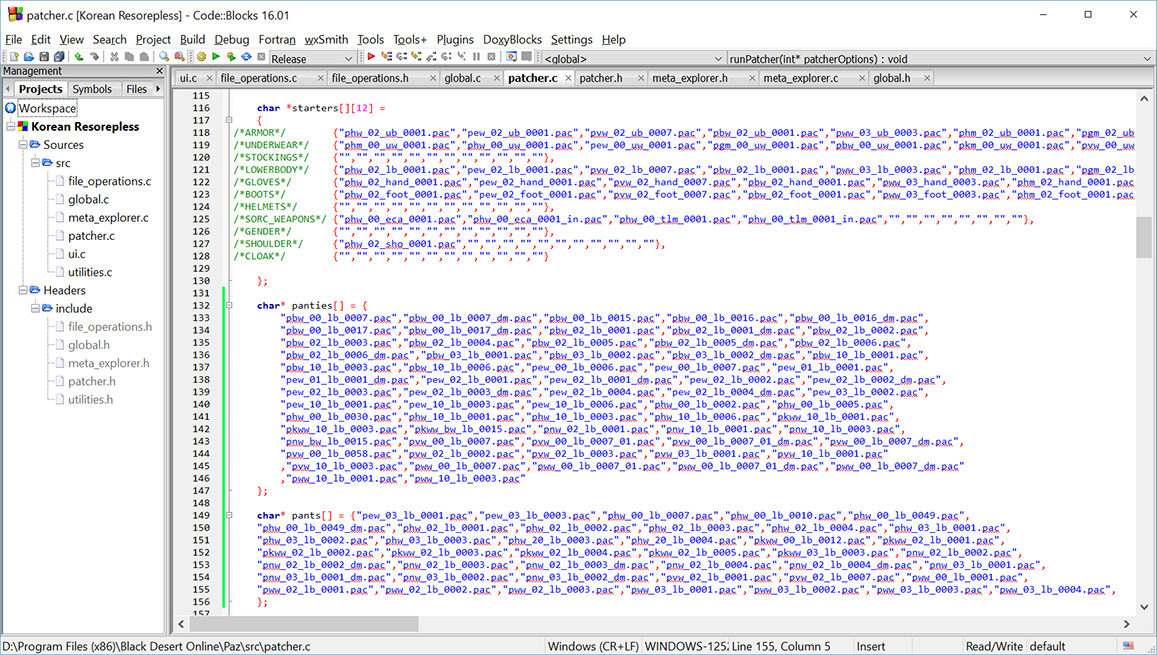

and add them here:
It's almost done, so you will be able to get what you want soon.
There is a link in my signature that takes you directly to my Paypal donation page, if you are interested, just click it:
Last edited:
Lunaris Tenebrae
Potential Patron
- Joined
- May 7, 2016
Hey BlackfireBR, firstly thank you for all your work. However Windows Defender just claimed that the File Extractor you've uploaded includes a trojan, Trojan:Win32/Procyx.C!cl
please advise, thank you.
please advise, thank you.
BlackFireBR
Content Creator
- Joined
- Sep 2, 2013
Windows Defender is a dumbass, it probably doesn't like the fact that the program uses system calls to run quickbms (just like opening the command prompt and typing in commands). Can you tell me which file it tells it's a trojan, the File Extractor.exe or the quickbms.exe?
Also, you can download the source code here and see everything the program does to your PC, and I assure you, it really doesn't do anything like a trojan would do.
All the program does is to give different arguments to quickbms, according to which options you choose in the menu.
Lunaris Tenebrae
Potential Patron
- Joined
- May 7, 2016
Specifically it claimed the File Extractor.exe, and yea I'm more likely to trust you than Defender, just thought I would mention it.
Again thanks for all your work.
Again thanks for all your work.
BlackFireBR
Content Creator
- Joined
- Sep 2, 2013
I just made my version of blackdesert.bms for quickbms, and I commented every line:
It tells you what each line does, give you an example in C language of how to do the same thing for a more intuitive understanding, also it prints a lot of useful information while its running like variables values, which file is extracting, what is the hash of that file, the size, how many files were extracted already and the percentage of completeness, etc.
It works with the latest pad00000.meta so you can use it to extract all files of the game using this file.
quickbms_script-black_desert.zip
It tells you what each line does, give you an example in C language of how to do the same thing for a more intuitive understanding, also it prints a lot of useful information while its running like variables values, which file is extracting, what is the hash of that file, the size, how many files were extracted already and the percentage of completeness, etc.
Code:
# Black Desert (quickbms script) by BlackFire
# This is a modified version of the original script found at
# http://aluigi.altervista.org/bms/blackdesert.bms
# That makes the script jumps over the 256000 bytes they added in the meta file, after a patch.
# For a visual guide on how the .meta and .PAZ file is sctructured, see this thread:
# https://www.undertow.club/posts/129095
quickbmsver "0.7.4"
comtype blackdesert # Defines the compression type that will be used, when extracting a file
get EXT extension # gets the extension of the opened file
if EXT == "meta" #If the file extension is .meta
# pre-allocation, improves speed (doesn't matter if the values are bigger)
putarray 0 0x4000 "" # Array that is going to store the PAZs names
putarray 1 0x2000 "" # Array that is going to store the folder names
putarray 2 0x80000 "" # Array that is going to store the file names
get DUMMY long # Reads the first 4 bytes (long) of the meta file and stores it in the variable DUMMY. # In C: fread(&dummy,sizeof(long),1,metaFile);
get pPAZCount long # Reads how many PAZ files your game has. # In C: fread(&pPAZCount,sizeof(long),1,metaFile);
print "pPAZCount: %pPAZCount%"
# Paz files informations
for i = 0 < pPAZCount
get PAZ_NUM long
get HASH long
get PAZ_SIZE long
string PAZ_NAME p= "PAD%05d.PAZ" PAZ_NUM # Using the number stored in PAZ_NUM with 5 digits,creates a string that will hold the complete .PAZ file name (E.g.:PAD00001.PAZ) # In C: sprintf(paz_name,"PAD%.5d.PAZ",paz_num);
putarray 0 PAZ_NUM PAZ_NAME # Stores in the array 0 in the position [PAZ_NUM], the string we just created # In C: array0[paz_num] = paz_name;
next i
get FILES_COUNT long # Reads how many files your game has. # In C: fread(&files_count,sizeof(long),1,metaFile)
print "FILES_COUNT: %FILES_COUNT%"
savepos BLOCK_256K_START # Saves the current position in the file in a variable. This position is the beginning of a block of 256000 bytes that we need to skip. # In C: long block_256k_start = ftell(metafile);
print "BLOCK_256K_START: %BLOCK_256K_START%"
xmath BLOCK_256K_END "BLOCK_256K_START + 256000" # Calculates the byte that the 256000 bytes end # In C: long block_256k_end = block_256k_start + 256000;
print "BLOCK_256K_END: %BLOCK_256K_END%"
goto BLOCK_256K_END # Skips the 256000 bytes # In C: fseek(metaFile,block_256k_end,SEEK_SET);
savepos FILE_BLOCKS_START # Saves the current position in the file in a variable. This position is the beginning of the blocks that have the following format: HASH|FOLDER_NUM|FILE_NUM|PAZ_NUM|OFFSET|ZSIZE|SIZE # # In C: long file_blocks_start = ftell(metafile);
print "FILE_BLOCKS_START: %FILE_BLOCKS_START%"
math FILE_BLOCKS_COUNT = 0 # Counter of how many of those blocks we have # In C: long file_blocks_count = 0;
# Reads the file blocks, just to count how many of them there are, and where do they end, until the PAZ_NUM variable reads something that is out of the interval 1 <= PAZ_NUM <= pPAZCount
Do
get HASH long # The unique indentifier of this file
get FOLDER_NUM long # The index in the array 1 (folders array) which has the folder name from this file
get FILE_NUM long # The index in the array 2 (files array) which has the file name from this file
get PAZ_NUM long # The number of the .PAZ file that the file is located
get OFFSET long # The offset inside the .PAZ file specified which the file starts
get ZSIZE long # The compressed size of the file
get SIZE long # The uncompressed size of the file
if PAZ_NUM <= pPAZCount & PAZ_NUM >= 1
math FILE_BLOCKS_COUNT += 1 # Counts how many file blocks we have
endif
While PAZ_NUM <= pPAZCount & PAZ_NUM >= 1 # Condiditon that checks if the PAZ_NUM variable reads something that is out of the interval 1 <= PAZ_NUM <= pPAZCount
savepos CURRENT_POS # This position should be 28 bytes after the end of the fileblocks, because it read a whole file block before the while checked if it was valid
xmath FILE_BLOCKS_END "CURRENT_POS - (7 * 4)" # Calculates the position which is where the file blocks ended (each file block has 28 bytes (7 * sizeof(long)) # In C: long file_blocks_end = (current pos - 7 * sizeof(long));
print "FILE_BLOCKS_END: %FILE_BLOCKS_END%"
goto FILE_BLOCKS_END
get FOLDER_NAMES_TOTAL_LENGTH long # Gets the total length of the strings that are comming next, that are the folder names strings # In C: fread(&folder_names_total_length,sizeof(long),1,metaFile);
print "FOLDER_NAMES_TOTAL_LENGTH: %FOLDER_NAMES_TOTAL_LENGTH%"
savepos FOLDER_NAMES_START # Saves the position where the folder names strings start # In C: long folder_names_start = ftell(fp);
print "FOLDER_NAMES_START: %FOLDER_NAMES_START%"
callfunction SET_ENCRYPTION 1 # Decrypts the folder names that are going to be read next
log MEMORY_FILE FOLDER_NAMES_START FOLDER_NAMES_TOTAL_LENGTH # Saves all the next "FOLDER_NAMES_TOTAL_LENGTH" bytes, starting from the offset "FOLDER_NAMES_START" in a temporary memory called MEMORY_FILE # In C: fread(memory_file,1,folder_names_total_length,metaFile);
encryption "" "" # Tells the program to stop decrypting stuff for now
xmath FOLDER_NAMES_END "FOLDER_NAMES_START + FOLDER_NAMES_TOTAL_LENGTH" # Calculates which byte the folder names strings end # In C: long folder_names_end = folder_names_start + folders_name_total_length;
print "FOLDER_NAMES_END: %FOLDER_NAMES_END%"
goto FOLDER_NAMES_END # Goes to that position # In C: fseek(metaFile,folder_names_end,SEEK_SET);
get FILE_NAMES_TOTAL_LENGTH long # Gets the total length of the strings that are comming next, that are the file names strings # In C: fread(&file_names_total_length,sizeof(long),1,metaFile);
print "FILE_NAMES_TOTAL_LENGTH: %FILE_NAMES_TOTAL_LENGTH%"
savepos FILE_NAMES_START # Saves the position where the file names strings start # In C: long file_names_start = ftell(fp);
print "FILE_NAMES_START: %FILE_NAMES_START%"
callfunction SET_ENCRYPTION 1 # Decrypts the folder names that are going to be read next
log MEMORY_FILE2 FILE_NAMES_START FILE_NAMES_TOTAL_LENGTH # Saves all the next "FILE_NAMES_TOTAL_LENGTH" bytes, starting from the offset "FILE_NAMES_START" in a temporary memory called MEMORY_FILE2 # In C: fread(memory_file2,1,file_names_total_length,metaFile);
encryption "" "" # Tells the program to stop decrypting stuff for now
math FOLDER_NAMES_TOTAL_LENGTH -= 8 # Don't know why, but it ignores the last 8 bytes of the folder names string (2 irrelevent longs, maybe?)
# Reads the string which has all the folder names, assigning each folder name to a different position in the array 1 (folders array)
print "Collecting folder names..."
math i = 0
for TMP = 0 < FOLDER_NAMES_TOTAL_LENGTH
get INDEX_NUM long MEMORY_FILE # Reads from the MEMORY_FILE the the index number of the current folder
get SUB_FOLDERS long MEMORY_FILE # Reads from the MEMORY_FILE the number of subfolder of the current folder
get FOLDER_NAME string MEMORY_FILE # Reads from the MEMORY_FILE a folder name, as string, until a '\0' is found. E.g: "character/"
if FOLDER_NAME == "" # If no name was read, means that we reached the end of the folder names
break
endif
putarray 1 i FOLDER_NAME # Stores the folder name, in the position i of the array 1 (folders array) # In C: array1[i] = folder_name;
savepos TMP MEMORY_FILE
next i
print "Collecting file names..."
math i = 0
# Reads the string which has all the file names, assigning each file name to a different position in the array 2 (files array)
for TMP = 0 < FILE_NAMES_TOTAL_LENGTH
get FILE_NAME string MEMORY_FILE2 # Reads from the MEMORY_FILE a file name, as string, until a '\0' is found.
if FILE_NAME == "" # If no name was read, means that we reached the end of the file names
break
endif
putarray 2 i FILE_NAME # Stores the folder name, in the position i of the array 1 (folders array) # In C: array1[i] = file_name;
savepos TMP MEMORY_FILE2
next i
# Now we are going to extract the files, combining the information we find in the file blocks, with the arrays filled with the file and folder names
goto FILE_BLOCKS_START # Goes back to the beginning of the file blocks
for i = 0 < FILE_BLOCKS_COUNT # For all file blocks
get HASH long # The unique indentifier of this file
get FOLDER_NUM long # The index in the array 1 (folders array) which has the folder name from this file
get FILE_NUM long # The index in the array 2 (files array) which has the file name from this file
get PAZ_NUM long # The number of the .PAZ file that the file is located
get OFFSET long # The offset inside the .PAZ file specified which the file starts
get ZSIZE long # The compressed size of the file
get SIZE long # The uncompressed size of the file
getarray PAZ_NAME 0 PAZ_NUM # Gets the PAZ name at the position [PAZ_NUM] of the array 0 (PAZ names array) and stores is in the PAZ_NAME variable # In C: paz_name = array0[paz_num];
getarray FOLDER_NAME 1 FOLDER_NUM # Gets the folder name at the position [FOLDER_NUM] of the array 1 (folders array) and stores is in the FOLDER_NAME variable # In C: folder_name = array1[paz_num];
getarray FILE_NAME 2 FILE_NUM # Gets the file name at the position [FILE_NUM] of the array 1 (folders array) and stores is in the FILE_NAME variable # In C: file_name = array2[paz_num];
string FILE_PATH = FOLDER_NAME
string FILE_PATH += FILE_NAME # Creates a string and concatenates folder name with the file name strings, so we get the full path to the file. Eg: "character/multiplemodeldesc.xml"
open FDSE PAZ_NAME 1 # Open the .PAZ file specified in the PAZ_NAME variable
print "\n[FOLDER NAME]: %FOLDER_NAME%\n[ FILE_NAME ]: %FILE_NAME%\n HASH |FOLDER_NUM|FILE_NUM|PAZ_NUM| OFFSET|ZSIZE|SIZE\n%HASH%| %FOLDER_NUM% | %FILE_NUM% | %PAZ_NUM% |%OFFSET%|%ZSIZE%|%SIZE%"
callfunction SET_ENCRYPTION 1
# If uncompressed size is greater than compressed size, it means that the file is compressed, so we use "clog" which uncompresses and extracts the file
if SIZE > ZSIZE
# Uncompress and extracts the file and saves it just like is specified in "FILE_PATH", OFFSET is what byte of the .PAZ file the file starts, ZSIZE is the compressed size and SIZE is the uncompressed size, this uses the compression algothithm defined with the "comtype" command
clog FILE_PATH OFFSET ZSIZE SIZE 1
else # If uncompressed size is lesser or equal than compressed size, it means that the file is NOT compressed, so we use "log" which just extracts the file
# Simply extracts the file and saves it just like is specified in "FILE_PATH", OFFSET is what byte of the .PAZ file the file start and SIZE is the file size
log FILE_PATH OFFSET SIZE 1
endif
encryption "" ""
print ""
xmath PERCENTAGE "i*100/FILE_BLOCKS_COUNT"
print "Files Extracted: %i%/%FILE_BLOCKS_COUNT% (%PERCENTAGE% Percent Completed)"
next i
else if EXT == "PAZ" #If the file extension is .PAZ
get DUMMY long # Reads the first 4 bytes (long) of the meta file and stores it in the variable DUMMY. # In C: fread(&dummy,sizeof(long),1,metaFile);
get TOTAL_FILES long # Reads how many files this .PAZ file has. # In C: fread(&paz_files,sizeof(long),1,metaFile);
get FILE_PATHS_TOTAL_LENGTH long # Gets the total length of the strings that are the folder names and file names like this "character/multiplemodeldesc.xml"
savepos FILE_BLOCKS_START # Saves the current file's position, which is where the file blocks start # In C: long file_paths_start = ftell(file);
xmath FILE_BLOCKS_END "FILE_BLOCKS_START + (TOTAL_FILES * 4 * 6)" # Calculates the position where the file blocks end and it's where the file paths start
callfunction SET_ENCRYPTION 1 # Decrypts the what is going to be read next
log MEMORY_FILE FILE_BLOCKS_END FILE_PATHS_TOTAL_LENGTH # Starting for the offset where the file blocks end, it reads the next "FILE_PATHS_TOTAL_LENGTH" bytes and stores them in the MEMORY_FILE file # In C: fread(MEMORY_FILE,1,FILE_PATHS_TOTAL_LENGTH,file);
encryption "" "" # Tells the program to stop decrypting stuff for now
# Reads the bytes which has all the file paths, assigning each folder name to a different position in the array 0
math i = 0
for TMP = 0 < FILE_PATHS_TOTAL_LENGTH
get FILE_PATH string MEMORY_FILE # Reads from the MEMORY_FILE a file path, as string, until a '\0' is found. E.g: "character/"
if FILE_PATH == "" # If nothing was read, means that we reached the end of the file paths
break
endif
putarray 0 i FILE_PATH # Stores the folder name, in the position i of the array 0 # In C: array0[i] = file_path;
savepos TMP MEMORY_FILE
next i
for i = 0 < TOTAL_FILES
get HASH long # The unique indentifier of this file
get FOLDER_NUM long # The index in the array 0 which has the folder name from this file
get FILE_NUM long # The index in the array 0 which has the file name from this file
get OFFSET long # The offset inside the .PAZ file specified which the file starts
get ZSIZE long # The compressed size of the file
get SIZE long # The uncompressed size of the file
getarray FOLDER_NAME 0 FOLDER_NUM # Gets the folder name at the position [FOLDER_NUM] of the array 1 (folders array) and stores is in the FOLDER_NAME variable # In C: folder_name = array1[paz_num];
getarray TMP 0 FILE_NUM # Gets the file name at the position [FILE_NUM] of the array 1 (folders array) and stores is in the FILE_NAME variable # In C: file_name = array2[paz_num];
string FILE_PATH = FOLDER_NAME
string FILE_PATH += TMP # Creates a string and concatenates folder name with the file name strings, so we get the full path to the file. Eg: "character/multiplemodeldesc.xml"
print "\n[FOLDER NAME]: %FOLDER_NAME%\n[ FILE_NAME ]: %TMP%\n HASH |FOLDER_NUM|FILE_NUM| OFFSET|ZSIZE|SIZE\n%HASH%| %FOLDER_NUM% | %FILE_NUM% |%OFFSET%|%ZSIZE%|%SIZE%"
callfunction SET_ENCRYPTION 1
# If uncompressed size is greater than compressed size, it means that the file is compressed, so we use "clog" which uncompresses and extracts the file
if SIZE > ZSIZE
# Uncompress and extracts the file and saves it just like is specified in "FILE_FULL_PATH", OFFSET is what byte of the .PAZ file the file starts, ZSIZE is the compressed size and SIZE is the uncompressed size, this uses the compression algothithm defined with the "comtype" command
clog FILE_PATH OFFSET ZSIZE SIZE
else # If uncompressed size is lesser or equal than compressed size, it means that the file is NOT compressed, so we use "log" which just extracts the file
# Simply extracts the file and saves it just like is specified in "FILE_FULL_PATH", OFFSET is what byte of the .PAZ file the file start and SIZE is the file size
log FILE_PATH OFFSET SIZE
endif
encryption "" ""
next i
endif
startfunction SET_ENCRYPTION
encryption ice "\x51\xF3\x0F\x11\x04\x24\x6A\x00"
endfunctionIt works with the latest pad00000.meta so you can use it to extract all files of the game using this file.
quickbms_script-black_desert.zip
Last edited:
BlackFireBR
Content Creator
- Joined
- Sep 2, 2013
It still works, just don't patch for multiplemodeldesc.xml or partcombinationdesc.xml and you should be fine.
See this thead: Black Desert - How to Swap Armors Costumes and Weapons
Thanks for your contribution to make such a nice mod, BlackFire!
I'm interested in your Resorepless nude mod, so if I have chance, I want to study how it is working.
Do you have a plan to share the source code of your nude mod?
If so, I would very appreciate for your kindness. Thanks!
I'm interested in your Resorepless nude mod, so if I have chance, I want to study how it is working.
Do you have a plan to share the source code of your nude mod?
If so, I would very appreciate for your kindness. Thanks!
BlackFireBR
Content Creator
- Joined
- Sep 2, 2013
I sent you a PM with the source code and some explanations ;)
Thank you for kindly reply every time!
Last edited:
BlackFireBR
Content Creator
- Joined
- Sep 2, 2013
Which tools exactly you are using, and which game region?
I'm using meta injector in kr sever
BlackFireBR
Content Creator
- Joined
- Sep 2, 2013
What's the texture name of the texture you are trying to inject
PBW_00_NUDE_0001,PEW_01_NUDE_0001,PHW_01_NUDE_0001,PWW_01_NUDE_0001 skin textures
BlackFireBR
Content Creator
- Joined
- Sep 2, 2013
You're gonna have to download this:
BreastSizePatcher-v1.1.zip
Instructions :
1 - Put the content of the zip file into your Black Desert Online root folder (E.g:"C:\Program Files(x86)\Black Desert Online\")
Note: If you have a "live" folder, extract it to the "live" folder instead.
2 - Go into your PAZ folder and run BreastSizePatcher.exe
3 - Press 1 to install the patch.
4 - Select your corresponding game region.
5 - Go to Black Desert Online\gamecommondata\customization\your_class\customizationboneparamdesc_your_class.xml
6. press ctr+f and search "Thigh" and "Calf" and "Pelvis", change max value for left and right parts.
For example:
<ParamDesc Index="143" Min="0.70 0.70 0.70" Max="5.25 5.25 5.25" Default="1.00 1.00 1.00" BoneName="Bip01 L Thigh" PartName="base_basebody" Component="S" WeightAxis01="X" WeightAxis02="Y" WeightAxis03="Z"/>
<ParamDesc Index="144" Min="0.70 0.70 0.70" Max="5.25 5.25 5.25" Default="1.00 1.00 1.00" BoneName="Bip01 R Thigh" PartName="base_basebody" Component="S" WeightAxis01="X" WeightAxis02="Y" WeightAxis03="Z"/>
I change max value to 5.25, for default is 1.25
Similar threads
